★Acquire original signal of CMOS sensor OV9734/OV2740, really restore image details, rich color levels.
★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.
★High reliability, more than 2000V isolation of the sensor and processing board.
★Signal line can be up to 4m.
★PS2 Keyboard to input information.
★Realize recording function with HD130 together.
CCU Image Processing Board
Model | OK_EH206 | |
Adaptive Sensor | OV9734(1280×720), 1/9"CMOS OH01A(1280×720), 1/11"CMOS | OV2740(1920×1080),1/6"CMOS |
Output | HDMI(1280×1024 P@60Hz) DVI(1280×1024 P@60Hz) S-VIDEO(720×576) CVBS(720×576) | HDMI(1920×1080 P@60Hz) DVI(1920×1080 P@60Hz) |
Image Saving | Resolution:1280 x 720, Format:BMP Quality:Non-destructive, Memory:SD card | Resolution:1920 x 1080, Format:BMP Quality:Non-destructive, Memory:SD card |
White Balance | One button for automatic white balance | |
Photometry | 2 types - Average/Peak, optional region | |
Parameter Adjustment | Brightness, R/G/B Saturation, Sharpness, Gamma, Magnification | |
Panel Button | Menu, White Balance, Freeze, Save etc. | |
Menu Language | Chinese, English | |
Dimension | 183×127×20(mm) | |
Power | 12V,2A |
File Download

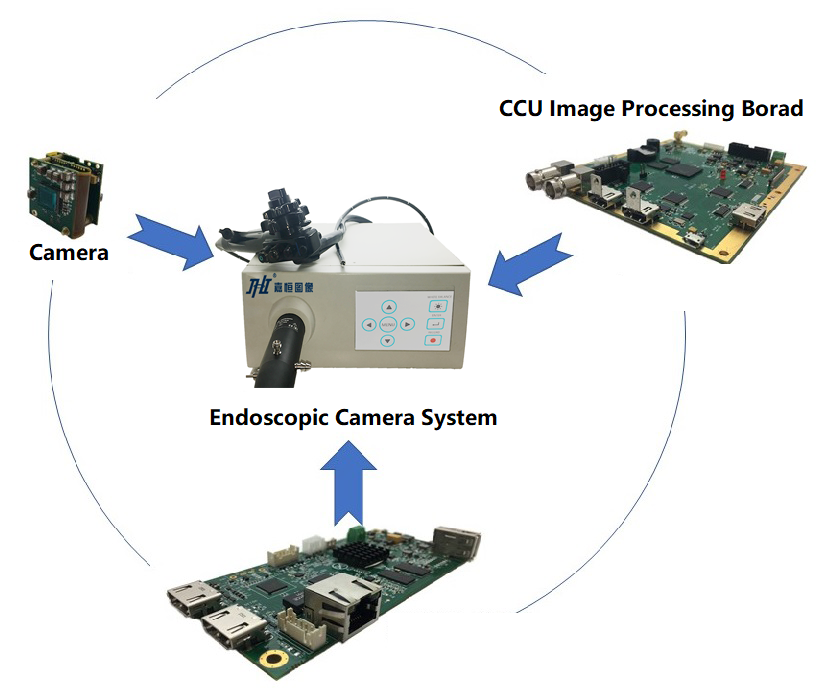

OH01A/OV9734/OV2740 Endoscopic Camera System
