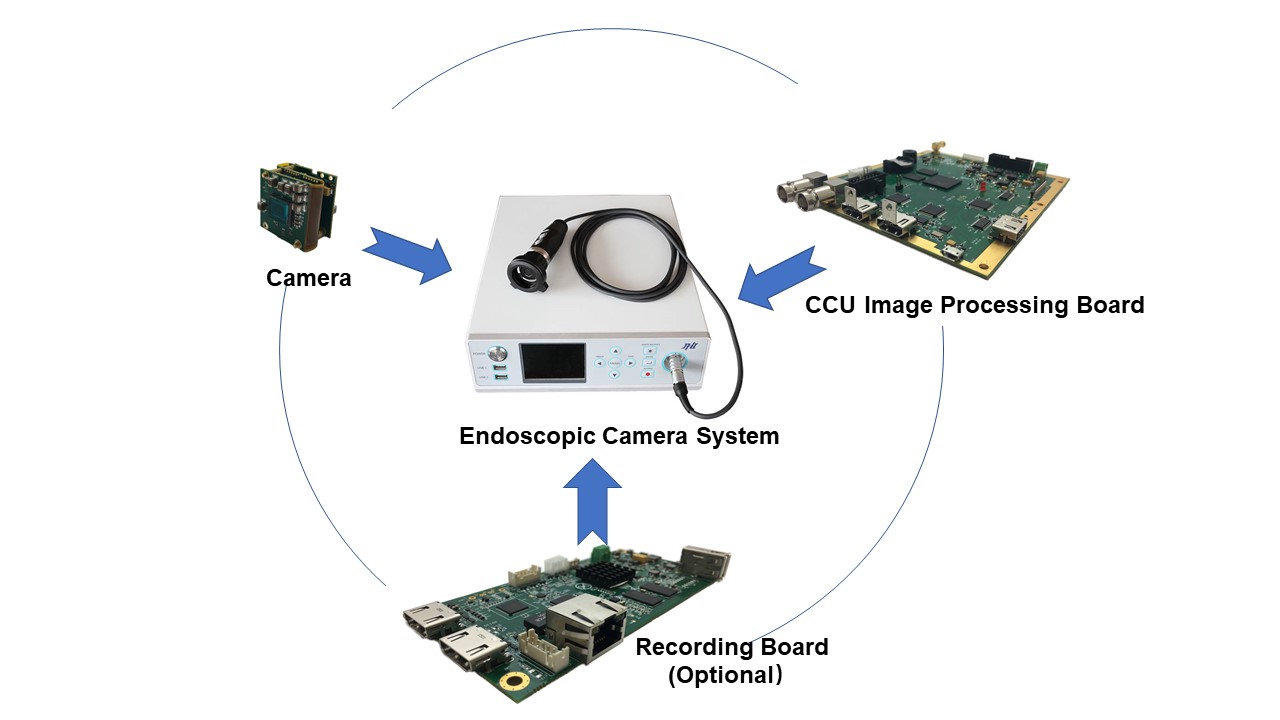

OK_ES102&OK_MC102 SD CCD Endoscopic Camera System

★1/3”CCD image sensor, high sensitivity and low noise.

★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.

★High reliability, the latest isolation technology of power and signal, all interfaces with ESD protection.

★CCD dead pixel elimination and CCD parameter save.

★Handle button for quick screenshot and “Menu” button on front panel for function operation.

Print
Share

  • Product Detail
  • Product Parameters
  • Download

Camera

Model

OK_MC102

Image Sensor

1/3”

Resolution

752 x 582

Frame Rate

25F/s

Exposure

Global

Button Function

Freeze, white balance etc.

Dimension

23   x 23 x 23(mm)



CCU Image Processing Board

Model

OK_ES102

Output

CVBS(768 x 576)×2,S-VIDEO (768 x 576)

RGB(768 x 576), DVI(1280x 1024)

Image  Processing

Noise  reduction, color rendition, edge enhancement, brightness adjustment, image  magnification, dead pixel elimination

Light  Source

Multiple  modes for light sources of LED,Xenon Lamp etc.

White  Balance

One  button for automatic white balance

Photometry

2 types  - Average/Peak, optional region

Parameter  Adjustment

Brightness,  R/G/B Saturation, Sharpness, Max. Gain, Gamma, Magnification, Mirror

Panel  Button

Menu,  White Balance, Freeze, Save etc.

Image  Saving

Resolution:768 x  576, Format:BMP,

Quality:Non-destructive,  Memory:SD card

Menu Language

Chinese, English, Russian, Spanish, Arabic, Korean, French, German

Special Function

Compatible with multiple CCD sensors (1/10”& 1/6”) for video scope

Dimension

228×130×35(mm)

Power

12V DC,2A



Recording Board (Optional)

Model

SD130

Video Saving

Resolution:720×576,Format:H.264,

Code Rate:4Mbps

Image Saving

Resolution:720×576,Format: BMP

Interface

Input: CVBS, Memory: USB

USB Drive

U disk, Mobile hard disk, FAT32

Dimension

130×130×19(mm)

Power

12V,1A
