★Super HD 4K Resolution:3840 x 2160P@60Hz.
★True color, multiple color modes for light sources.
★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.
★Low power consumption for handle, simple connection, digital transmission without interference, good uniformity.
★Flexible photometry algorithm for complex surgical scene.
Camera
Model | OK_MC401 | OK_MC402 | OK_MC401-60 | OK_MC402-60 |
Image Sensor | 1/1.9"CMOS | 1/1.8"CMOS | 1/1.9"CMOS | 1/1.8"CMOS |
Resolution | 3840x2160 | 3840x2160 | ||
Frame Rate | 30F/s | 60F/s | ||
Button Function | Freeze, white balance etc. | |||
Dimension | 33x26x26(mm) |
CCU Image Processing Board
Model | OK_EU401 |
Output | HDMI2.0(3840x 2160P@60Hz), HDMI×2(1080P@60Hz),DVI(1080P@60Hz) |
Image Processing | Noise reduction, color rendition, edge enhancement, contrast adjustment, image magnification, dead pixel elimination, vascular enhancement,eliminate the grid |
Light Source | Multiple modes for light sources of LED,Xenon Lamp etc. |
White Balance | One button for automatic white balance |
Photometry | 2 types - Average/Peak, optional region |
Parameter Adjustment | Brightness, R/G/B Saturation, Sharpness, Max. Gain, Gamma, Magnification, Mirror |
Panel Button | Menu, White Balance, Freeze, Save etc. |
Image Saving | Resolution:3840x 2160, Format:BMP, Quality:Non-destructive, Memory:SD card |
Menu Language | Chinese, English |
Dimension | 168×155×19(mm) |
Power | 12V,2A |
File Download

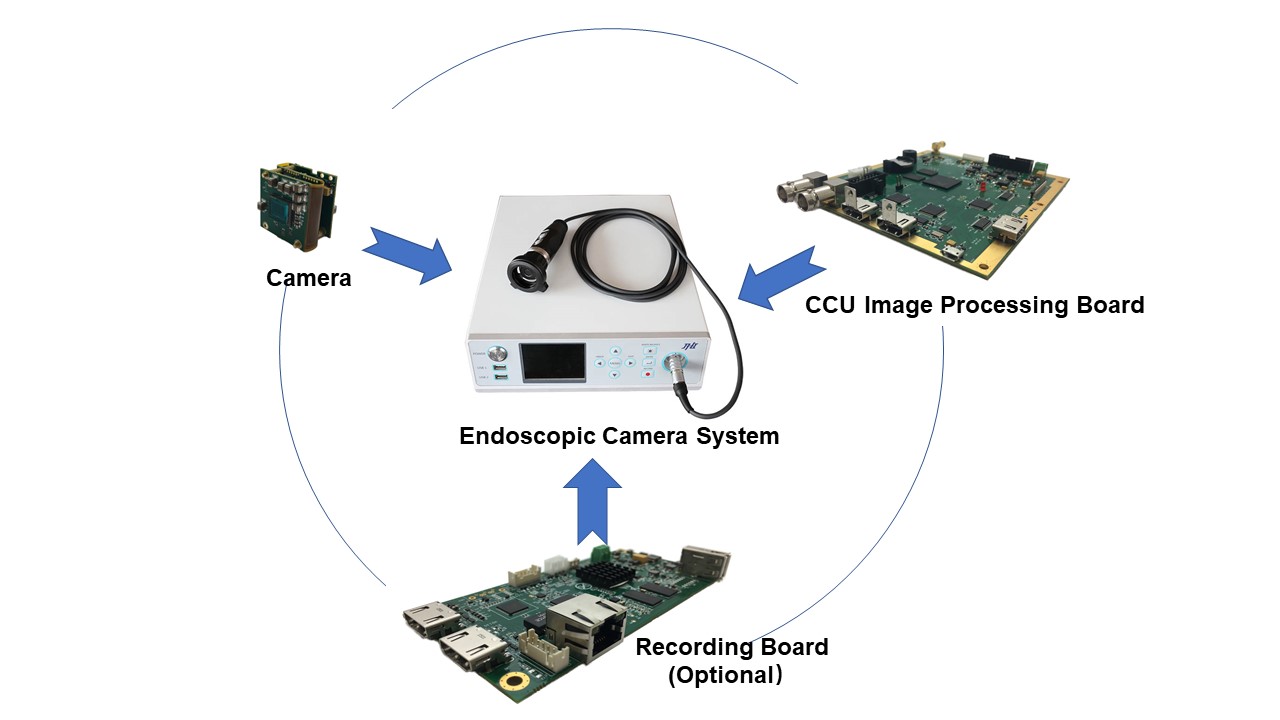

Super HD 4K Endoscopic Camera System
