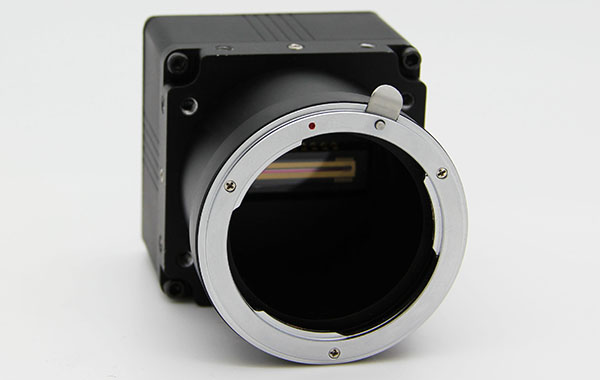

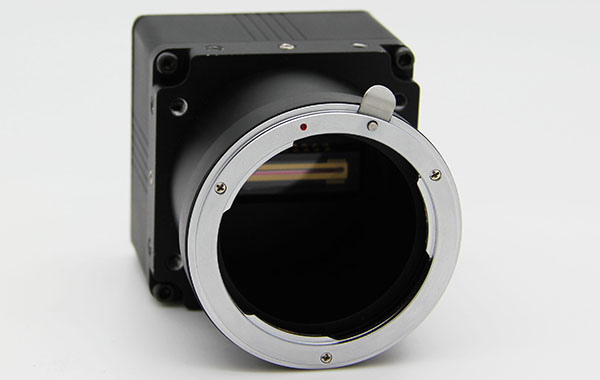

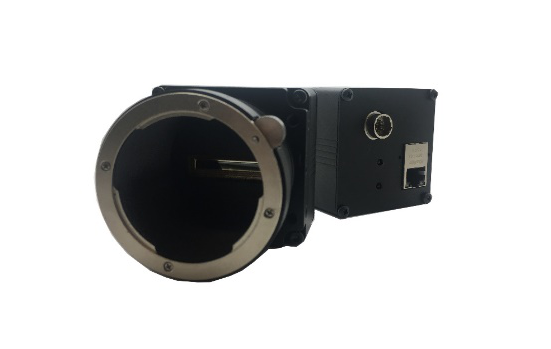

OK_LM4060 Mono Line Scan Camera

•Conforms to GigE Vision protocol and GenlCam standard.

•Support gamma correction function

•Support 32M cache for data transmission in case of emergency

•Support hot plug, easy to use.

•Conforms to RoHS certifications.

Print
Share

  • Product Detail
  • Product Parameters
  • Download

•Conforms to GigE Vision protocol and GenlCam standard.

•Support gamma correction function

•Support 32M cache for data transmission in case of emergency

•Support hot plug, easy to use.

•Conforms to RoHS certifications.


Application

√Online quality testing

√Web page detection

√Object size measurement

√Object vibration and displacement detection, etc.

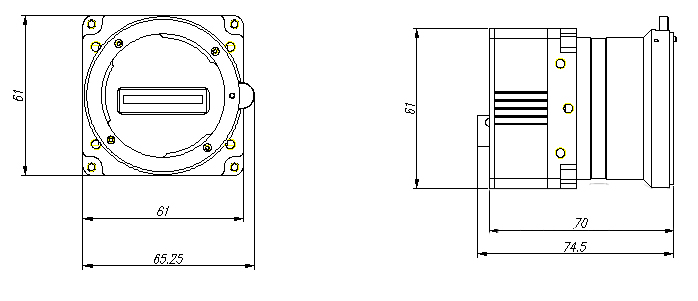

Dimension


Sensor Type

Mono CMOS

Sensor supplier

AWAIBA

Effective Pixels

4096 Pixels

Pixel Size

7μm×7μm

Highest line rate

24kHz

Dynamic range

66dB

Gain

-6~20dB

Exposure time

2~5240 us

Interface

GigE

Bit depth

8、12 bit (Programmable selection)

A/D

12bit

Output data format

Mono8、Mono12

Image storage format

RAW、JPG、BMP

Operating mode

Free, edge triggered

Power supply

+12VDC

Power consumption

4W

Lens mount

F mount

Workinghumidity

20-80%

Save environment

-30℃~70℃/ 20%~90%

Weight

242g

Operating system

Windows series

File Download

LM4060
